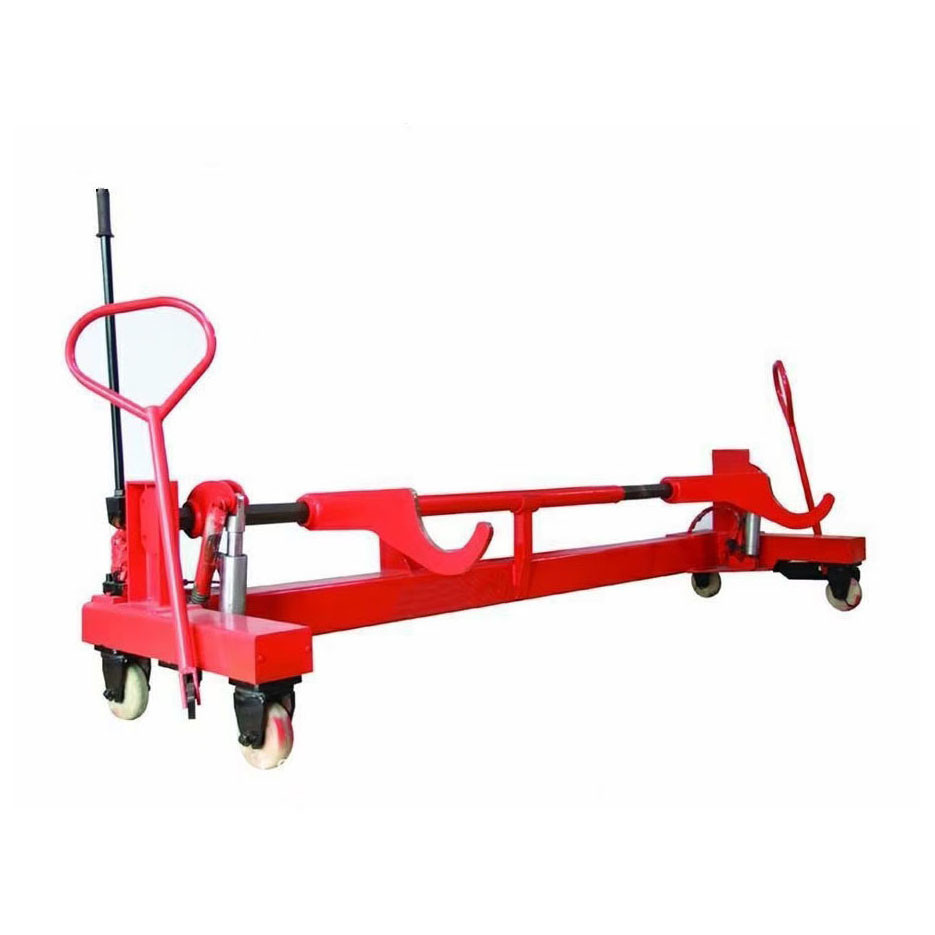

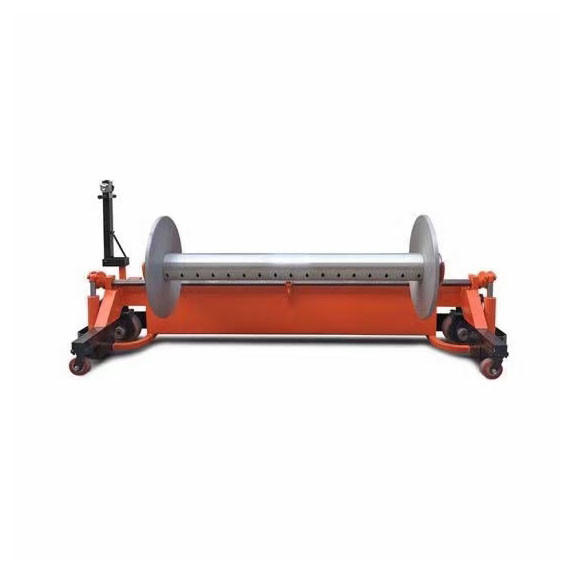

Customized Warp Beam trolley Flexible Move
Customized Warp Beam trolley Flexible Move
Customized Warp Beam trolley Flexible Move Customized Warp Beam trolley Flexible Move Customized Warp Beam trolley Flexible Move Customized Warp Beam trolley Flexible Move
Contact Now

Customized Warp Beam trolley Flexible Move

Minimum Order Quantity : 1 Set Price : $2,000.00 - $3,000.00/Pieces
Packaging Details : 1.Steel Pallet&amp;Stretch Wrapping Film for FCL(full container loaded)<br> 2.Wooden Box for LCL(less than container loaded) Delivery Time : 4-7 Weeks
Payment Terms : L/C, T/T Supply Ability : 50 Set/Sets per Month
Place of Origin: Jiangsu, China Brand Name: Xianchuang
Model Number: BLC-05

Detail Information
Dimension (L X W X H): As Customized Warranty: 13 Months
Customized Support: OEM Usage: Tools, Warp Beam Transport And Lift
Material: Steel Wheel: Four-wheel
Name: Textile Hydraulic Lift Trolley Applicable Industries: Weaving Factory
Port: NINGBO/SHANGHAI

Product Description

1. Mainly production process: according to the design drawings, precision welded and formed in sheet-metal workshop, with high-performance oil pump in accordance with the export quality standards to enhance the hydraulic performance. The surface is teated with anti-rust paint to meet the customer's production demand
2. Useful

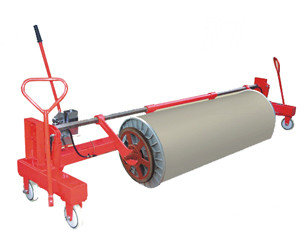

* Suitable for Bottom Beam transporting, inserting in weaving Machines; warp beam weighing up to 1500kgs and an additional loading capacity of 200kgs for the heald frame. * Apply beam barrel Diameter Φ150 -Φ400mm, beam width 1500-3900 mm, Aluminum Flange Diameter Φ800 - Φ1250 mm.
3. Features
* Four wheel synchronization, any Angle to turn and walk
* Hydraulic vertical lifting of the heald frame, fast speed, high efficiency
* Double cylinder synchronous lifting, balanced and stable, beamwith heald frame on the machine at the same
time
* Lower bracket hook horizontal sliding adjustment of the upper shaft spacing
NameCustomized Warp Beam trolley Flexible Move 0
Textile Hydraulic Lift Trolley
Place of Origin
Jiangsu, China
Brand Name
Xianchuang
Usage
Warp Beam Transport and Lift
Material
High-duty Steel Structure
Wheel
Four-wheel
Carrying Capacity
1000-1500kgs
Hydraulic Cylinders
Two
Hydraulic Unit
One
Weight
as per order
Beam flange diameter
Φ800-Φ1250mm
Beam barrel diameter
Φ100-Φ400mm
Product Classification
Customized Warp Beam trolley Flexible Move 1
Company Profile
Customized Warp Beam trolley Flexible Move 3
Certifications
Customized Warp Beam trolley Flexible Move 5
Exhibition
Customized Warp Beam trolley Flexible Move 7
Manufacturing Technique
Customized Warp Beam trolley Flexible Move 9
Product packaging
Customized Warp Beam trolley Flexible Move 11
FAQ
Customized Warp Beam trolley Flexible Move 13
