500mm Hydraulic Cloth Roll Doffing Trolley For Transport
Contact Person : Blair Yao
Phone Number : 15852833985
WhatsApp : +8615852833985
| Minimum Order Quantity : | 5pcs | Price : | USD 2300-3000 pcs |
|---|---|---|---|
| Packaging Details : | Wooden Box | Delivery Time : | 4-7 weeks |
| Payment Terms : | L/C, T/T | Supply Ability : | 500pcs per Month |
| Place of Origin: | China | Brand Name: | Xianchuang |
|---|---|---|---|
| Model Number: | BLC-01 |
|
Detail Information |
|||
| Usage: | Warp Beam Transport And Lift | Applicable Industries: | Weaving Factory |
|---|---|---|---|
| Material: | High-duty Steel Structure | Warranty: | 13 Months From Date Of Shipment |
| Carrying Capacity: | 1000-1500kgs | Dimension(L*W*H): | As Customized |
| Core Components: | Bearing, Pressure Vessel, Gear, Pump | ||
| High Light: | electric warp beam carrier Lifter,warp beam carrier Trolley Lifter Heald Frame,Electric trolley for warp beams |
||
Product Description

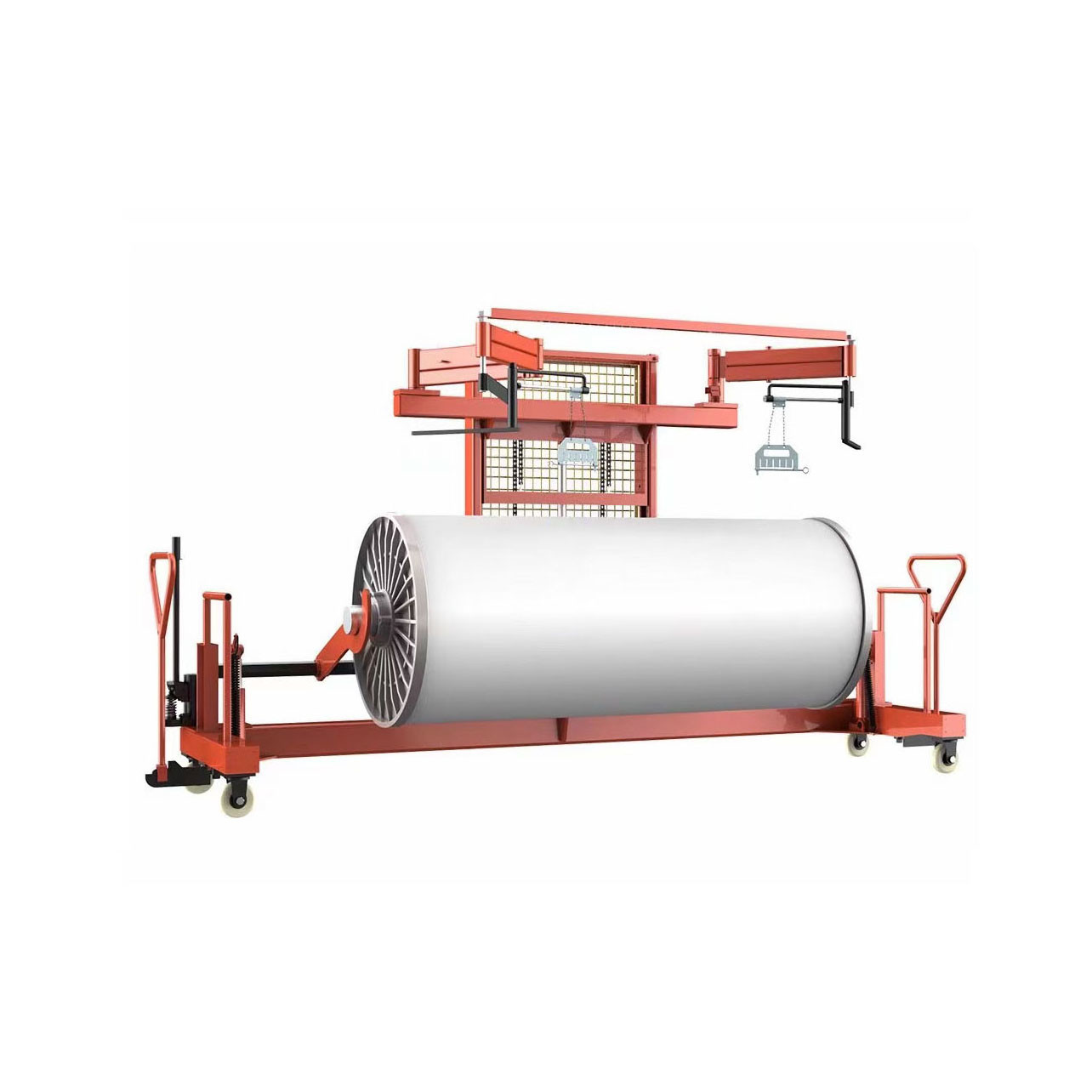

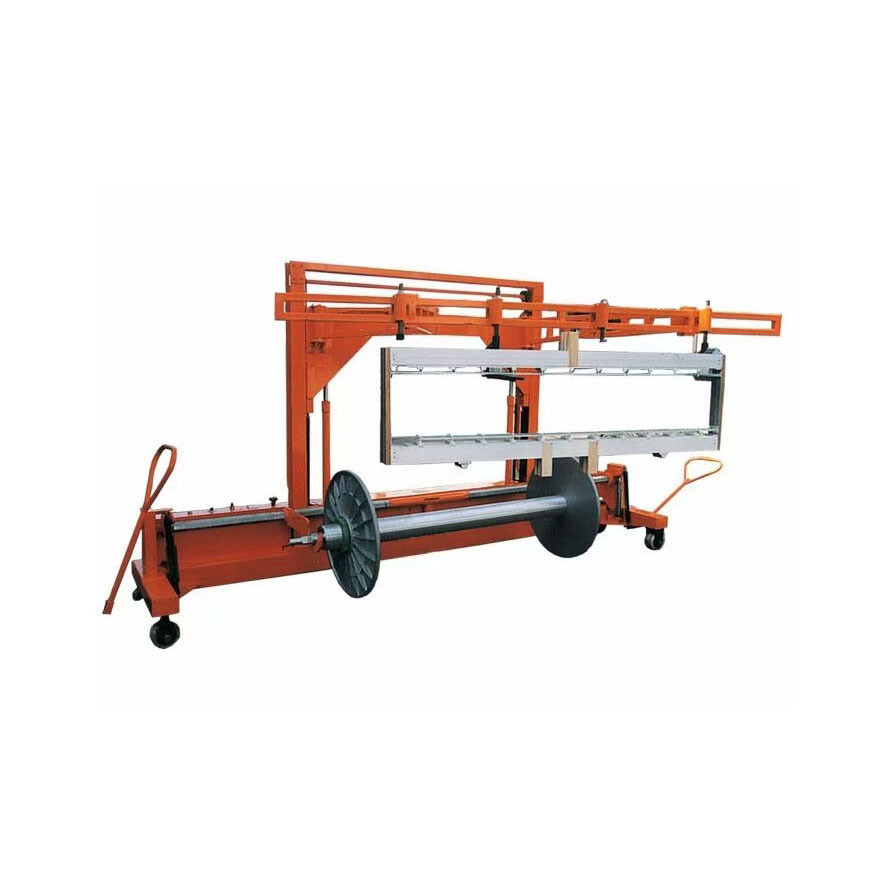

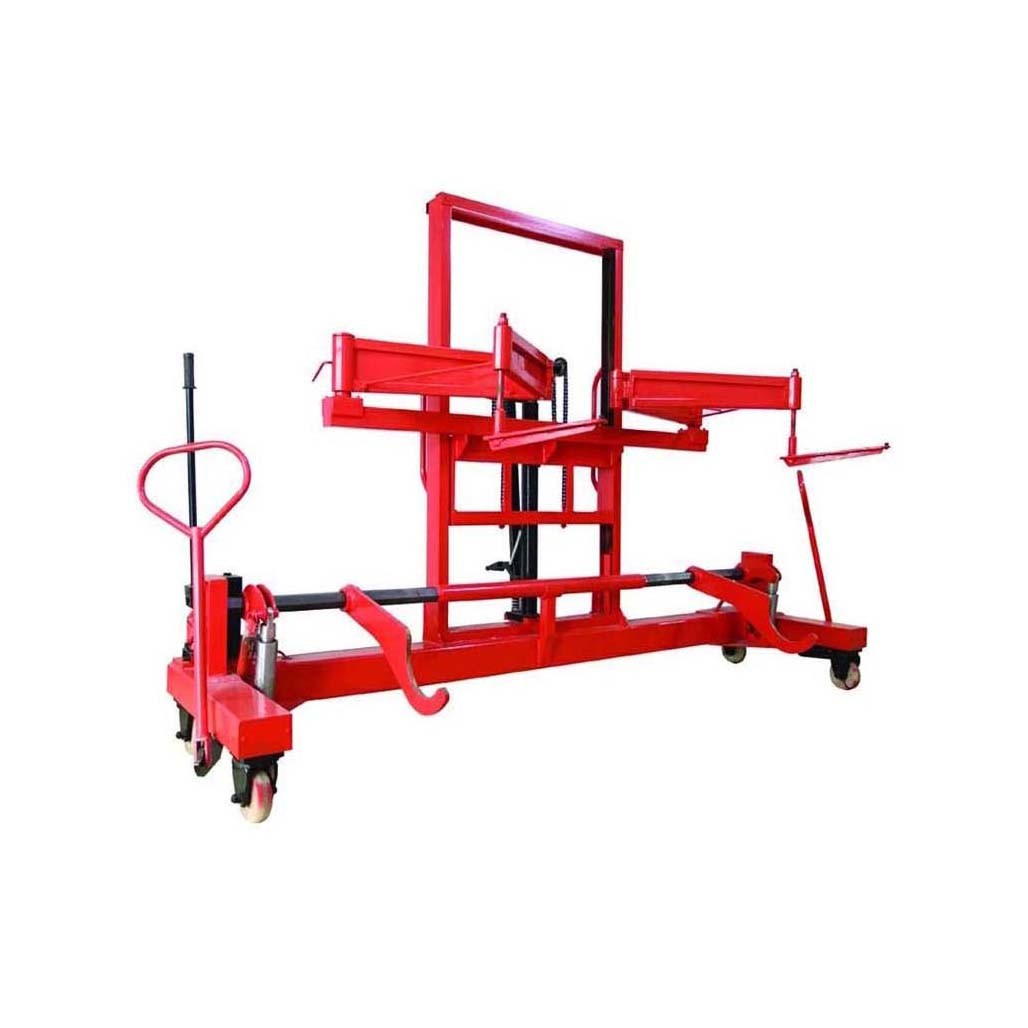

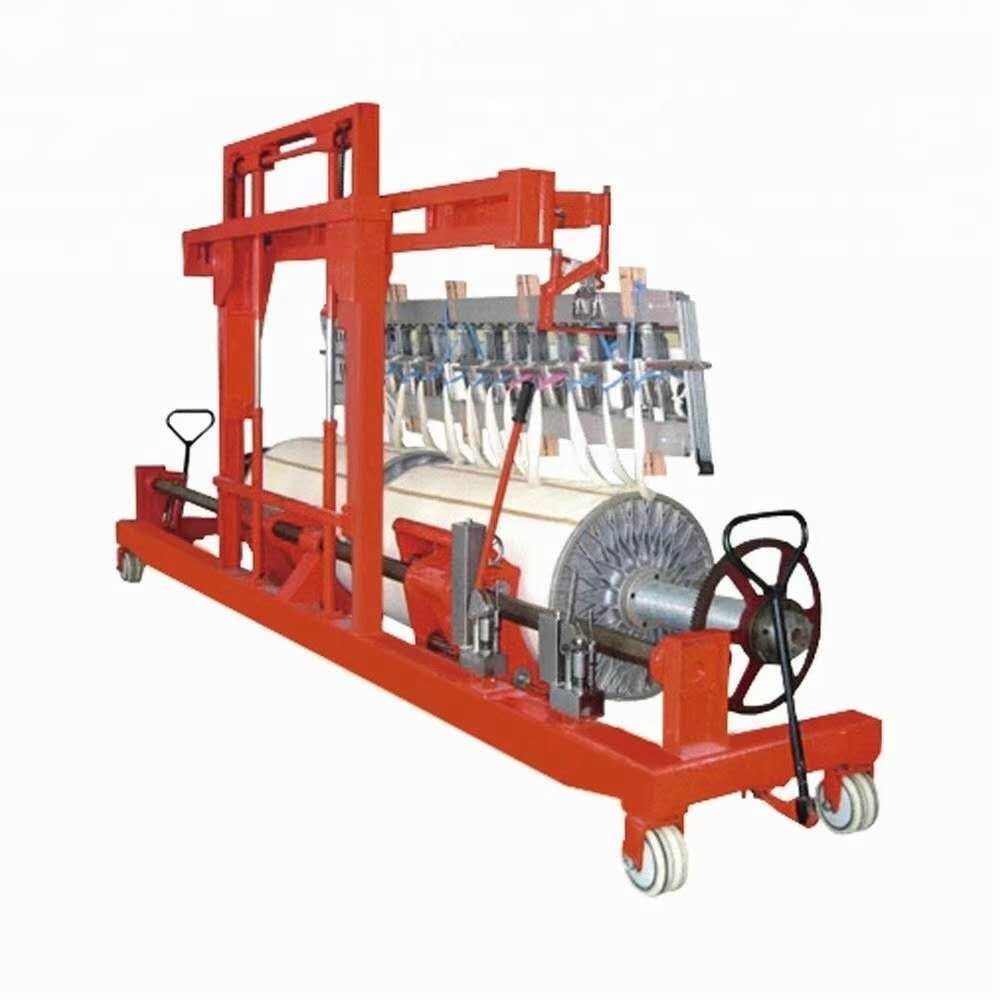

Textile Industry Electric Heald Frame Beam Lifter and Carrier
1.Alternative materials: mainly use high-quality square tubes, round steel, medium and thick plates, and export standard hydraulic components
2. Mainly production process: according to the design drawings, precision welded and formed in sheet-metal workshop, with high-performance oil pump in accordance with the export quality standards to enhance the hydraulic performance. The surface is treated with anti-rust paint to meet the customer's production demand

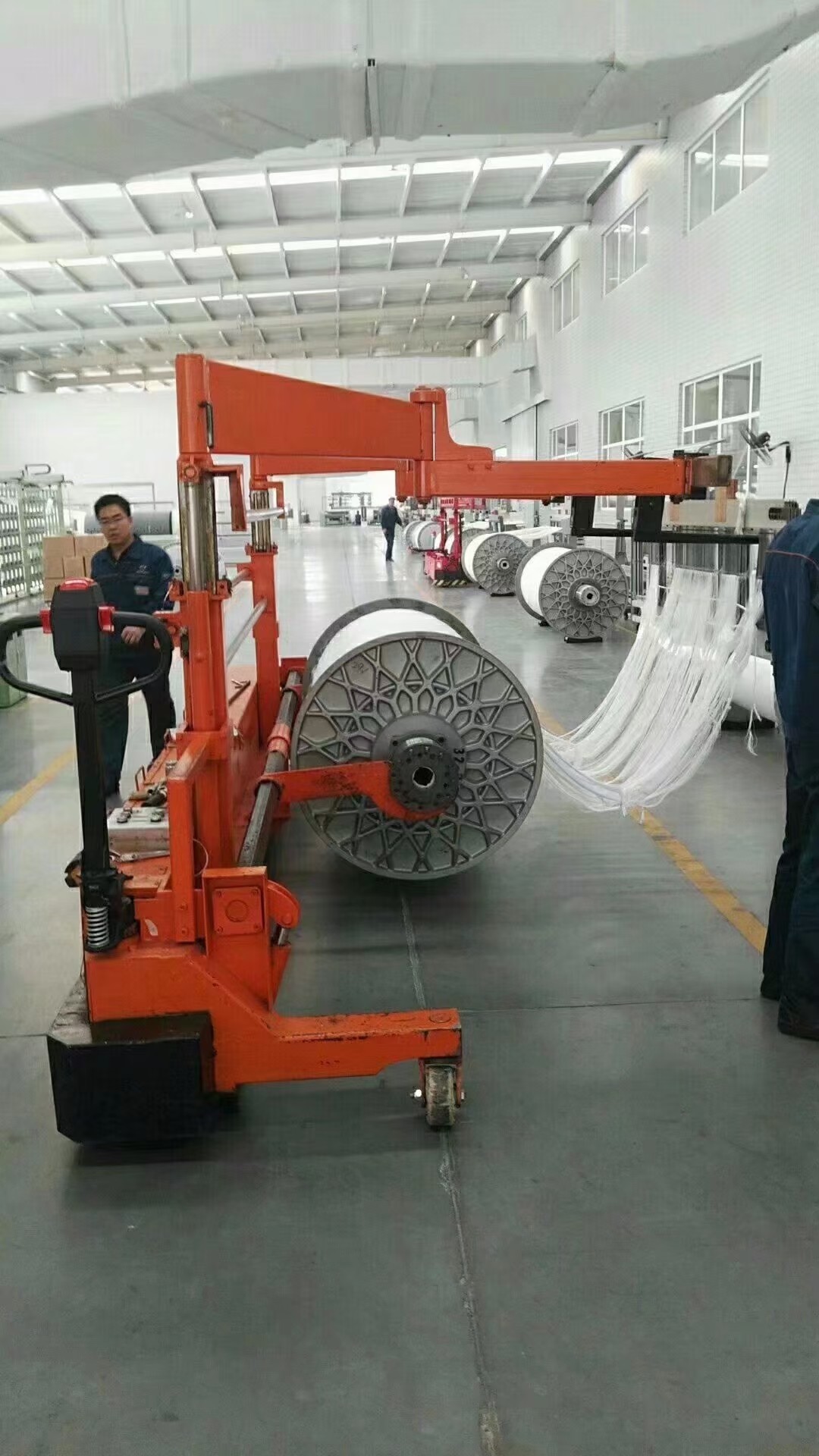

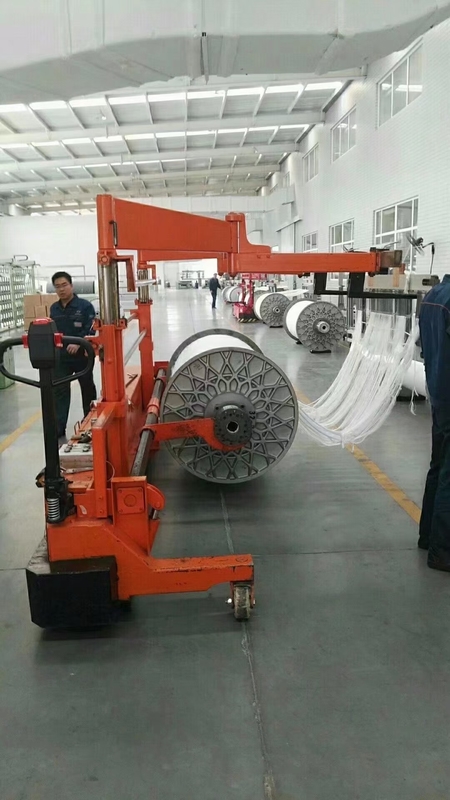

3. Useful: Suitable for Bottom Beam transporting, inserting in weaving Machines; warp beam weighing up to 1500kgs and an additional loading capacity of 200kgs for the heald frame.
Apply beam barrel Diameter Φ150 -Φ400mm, beam width 1500-3900 mm, Aluminum Flange Diameter Φ800 - Φ1250 mm
4. Features:Four wheel synchronization, any Angle to turn and walk
Hydraulic vertical lifting of the heald frame, fast speed, high efficiency
Double cylinder synchronous lifting, balanced and stable, beam with heald frame on the machine at the same time
Lower bracket hook horizontal sliding adjustment of the upper shaft spacing
