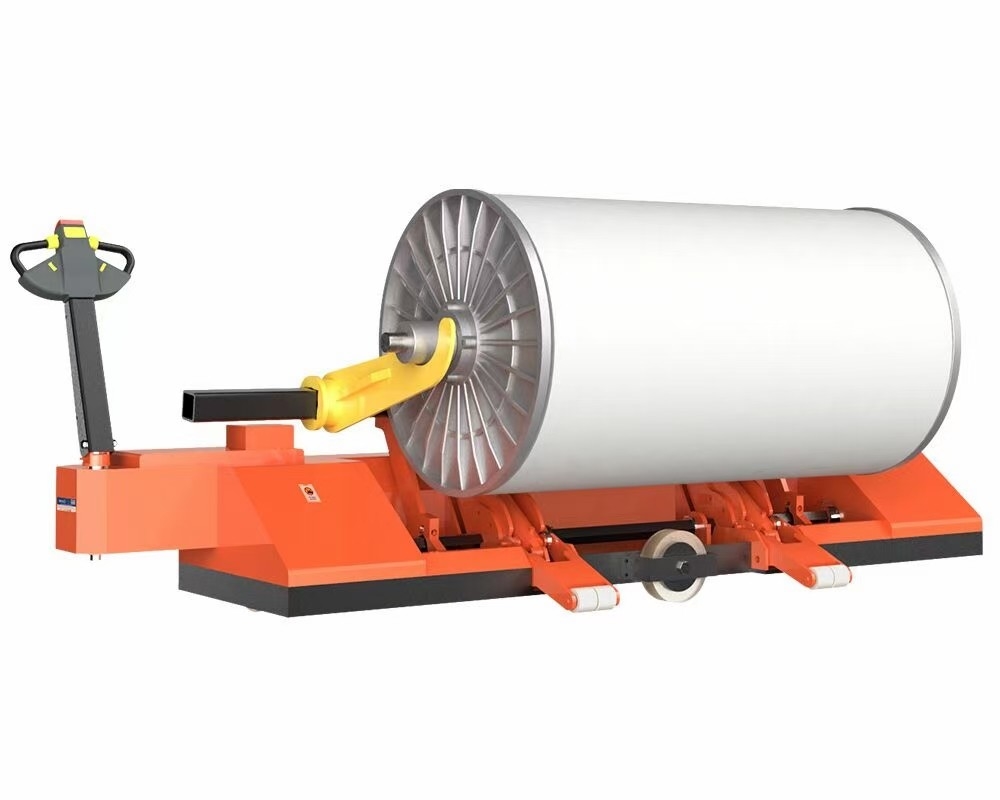

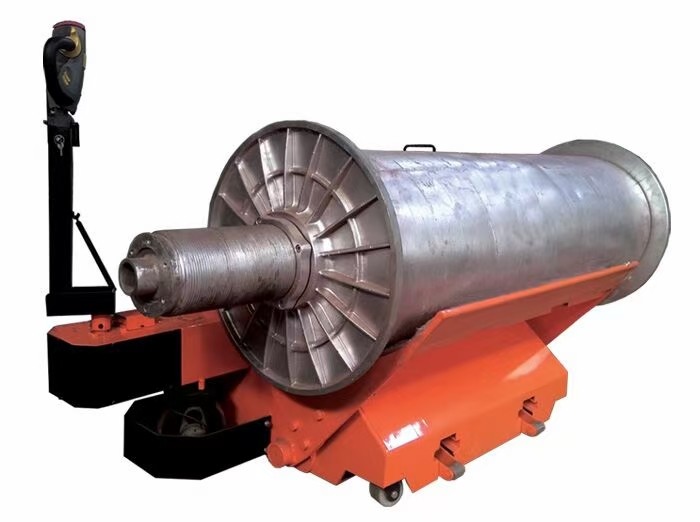

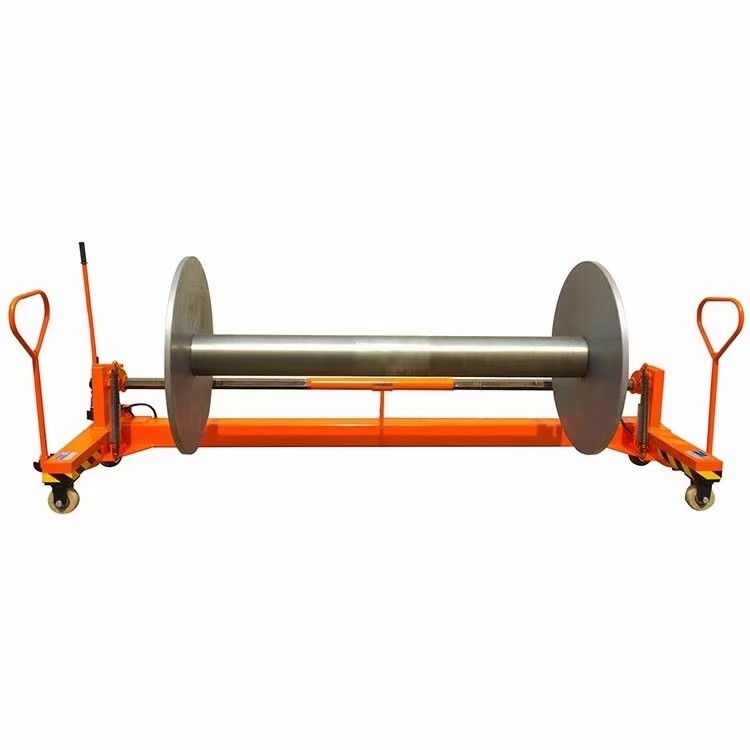

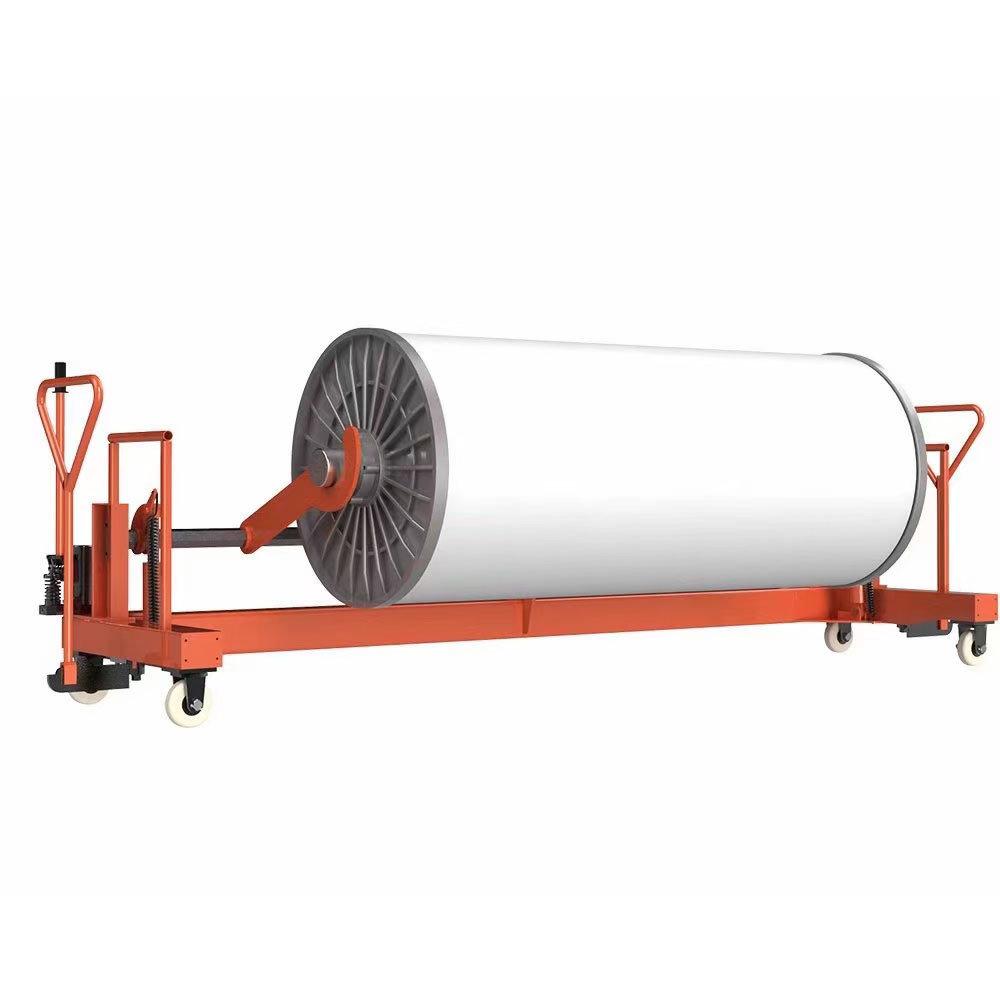

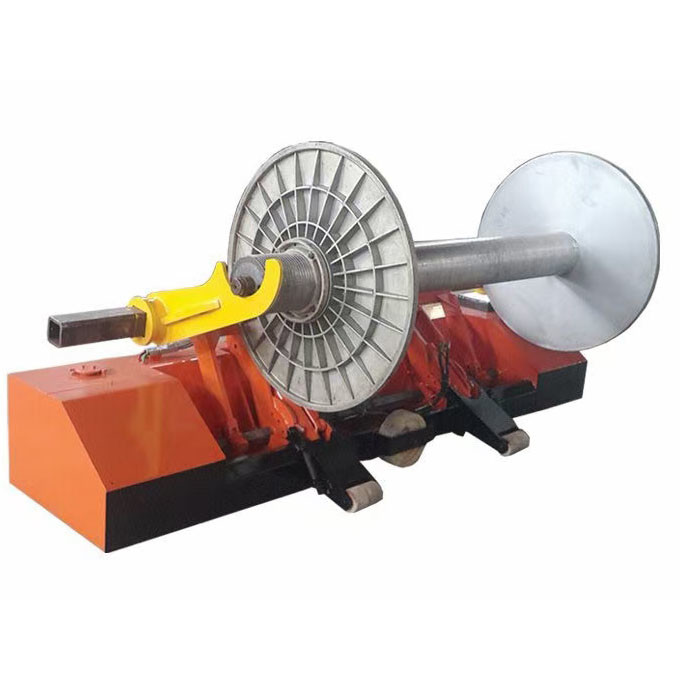

Transport Empty Warp Beam Lifting Trolley Hydraulic Manual I Beam Trolley
Transport Empty Warp Beam Lifting Trolley Hydraulic Manual I Beam Trolley
Transport Empty Warp Beam Lifting Trolley Hydraulic Manual I Beam Trolley Transport Empty Warp Beam Lifting Trolley Hydraulic Manual I Beam Trolley Transport Empty Warp Beam Lifting Trolley Hydraulic Manual I Beam Trolley Transport Empty Warp Beam Lifting Trolley Hydraulic Manual I Beam Trolley Transport Empty Warp Beam Lifting Trolley Hydraulic Manual I Beam Trolley Transport Empty Warp Beam Lifting Trolley Hydraulic Manual I Beam Trolley
Contact Now

Transport Empty Warp Beam Lifting Trolley Hydraulic Manual I Beam Trolley

Price : $2,000.00 - $3,000.00/Pieces Packaging Details : 1.Steel Pallet&amp;Stretch Wrapping Film for FCL(full container loaded)<br> 2.Wooden Box for LCL(less than container loaded)
Supply Ability : 50 Set/Sets per Month
Place of Origin: Jiangsu, China Brand Name: Xianchuang
Model Number: BLC-05

Detail Information
Dimension (L X W X H): As Customized Customized Support: OEM
Material: Steel Wheel: Four-wheel
Name: Textile Hydraulic Lift Trolley Usage: Warp Beam Transport And Lift
Applicable Industries: Weaving Factory Hydraulic Cylinders: Two
Hydraulic Unit: One Weight: As Per Order
Dimension: As Customized Feature: Convenience And Effective
Beam Barrel Diameter: 100-400mm Core Components: Bearing, Pressure Vessel, Gear, Pump
Port: NINGBO/SHANGHAI
Highlight:

Transport Warp Beam Lifting Trolley

,

Empty Warp Beam Lifting Trolley Xianchuang

,

Empty Warp Beam Transport Trolley

Product Description

New Designed Hydraulic Manual i-beam trolley



Name
Textile Hydraulic Lift Trolley
Place of Origin
Jiangsu, China
Brand Name
Xianchuang
Usage
Warp Beam Transport and Lift
Material
High-duty Steel Structure
Wheel
Four-wheel
Carrying Capacity
1000-1500kgs
Hydraulic Cylinders
Two
Hydraulic Unit
One
Weight
as per order
Beam flange diameter
Φ800-Φ1250mm
Beam barrel diameter
Φ100-Φ400mm




1. Mainly production process: according to the design drawings, precision welded and formed in sheet-metal workshop, with high-performance oil pump in accordance with the export quality standards to enhance the hydraulic performance. The surface is teated with anti-rust paint to meet the customer's production demand
2. Useful
* Suitable for Bottom Beam transporting, inserting in weaving Machines; warp beam weighing up to 1500kgs and an additional loading capacity of 200kgs for the heald frame. * Apply beam barrel Diameter Φ150 -Φ400mm, beam width 1500-3900 mm, Aluminum Flange Diameter Φ800 - Φ1250 mm.
3. Features
* Four wheel synchronization, any Angle to turn and walk
* Hydraulic vertical lifting of the heald frame, fast speed, high efficiency
* Double cylinder synchronous lifting, balanced and stable, beamwith heald frame on the machine at the same
time
* Lower bracket hook horizontal sliding adjustment of the upper shaft spacing
Transport Empty Warp Beam Lifting Trolley Hydraulic Manual I Beam Trolley 1
Company Profile
Transport Empty Warp Beam Lifting Trolley Hydraulic Manual I Beam Trolley 3
Certifications
Transport Empty Warp Beam Lifting Trolley Hydraulic Manual I Beam Trolley 5
Exhibition
Transport Empty Warp Beam Lifting Trolley Hydraulic Manual I Beam Trolley 7
Manufacturing Technique
Transport Empty Warp Beam Lifting Trolley Hydraulic Manual I Beam Trolley 9
Product packaging
Transport Empty Warp Beam Lifting Trolley Hydraulic Manual I Beam Trolley 11
FAQ
Transport Empty Warp Beam Lifting Trolley Hydraulic Manual I Beam Trolley 13
