Textile Fabric Roll Winding Machine Customized 380v 0.25kw

Price : $2,000.00 - $3,000.00/Pieces Packaging Details : Steel Pallet&Stretch Wrapping Film for FCL(full container loaded)
Delivery Time : 4-7 Weeks Payment Terms : L/C, T/T
Supply Ability : 100 Piece/Pieces per Month
Place of Origin: Jiangsu, China Brand Name: Xianchuang

Detail Information

Applicable Industries: Weaving Factory, Textile Factory Warranty Of Core Components: 1 Year
Core Components: Bearing, Gearbox, Motor, Pressure Vessel, Gear Voltage: 380v, According To Actual Condition
Dimension(L*W*H): As Customized Weight: 800 KG
Warranty: 1 Year Product Name: Horizontal Cloth Fabric Roll Winding Machine For Weaving
Usage: Weaving Loom Machine Power: 0.25kw,50 Hz
Dimension: As Per Customer's Fabric Width Fabric Width: 1.2-4.5meters
Max Winding Diameter: 1500mm Edge Alignment Error: Less Than 5mm
Speed: Synchronized With Weaving Machines Item: Fabric Roll Winder
After Warranty Service: Video Technical Support, No Service, Online Support, Spare Parts, Field Maintenance And Repair Service
High Light:

Textile Fabric Roll Winding Machine

,

Customized 380v Fabric Winding Machine

,

0.25 kw Fabric Winding Machine

Product Description

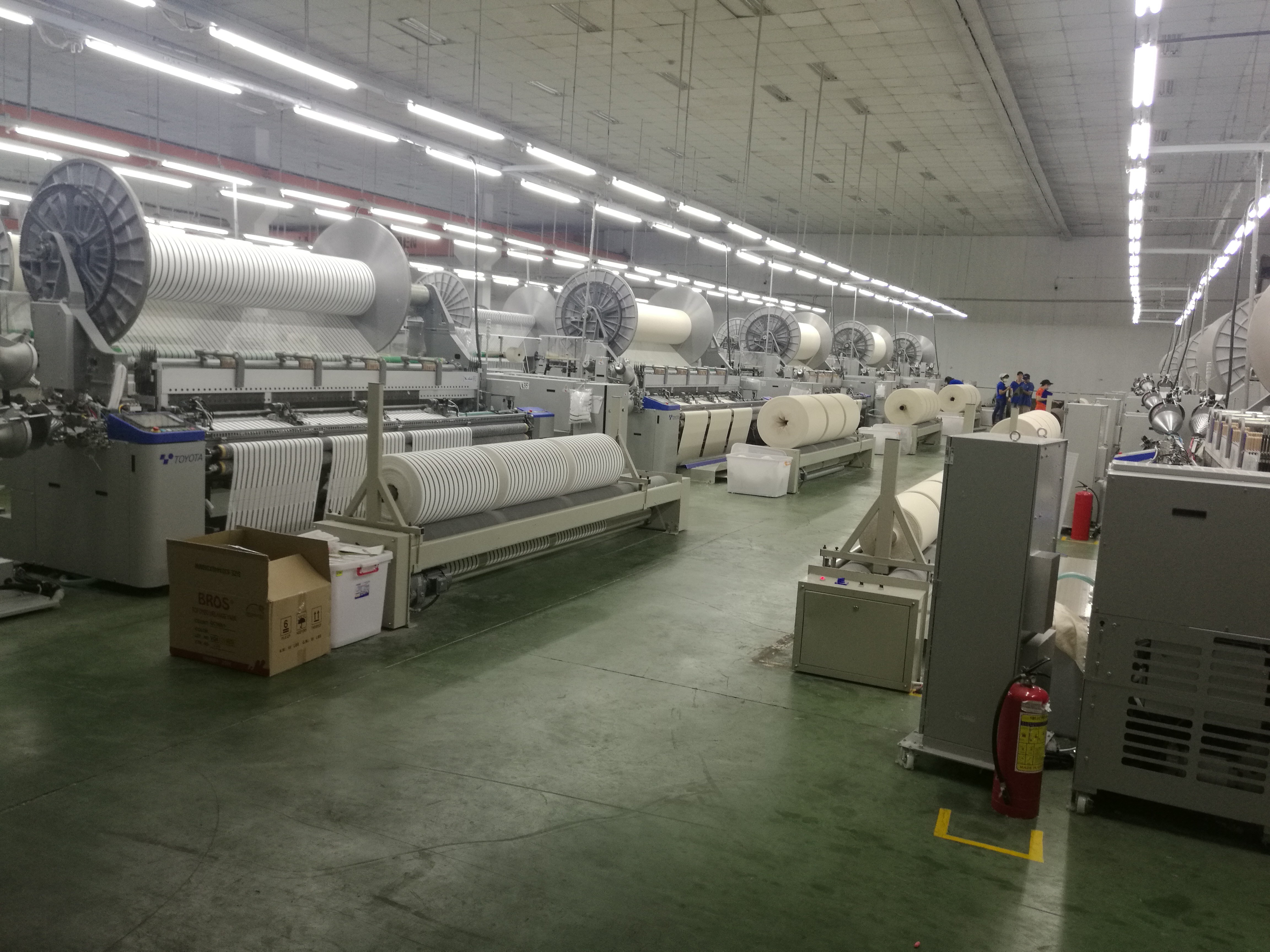

Textile Fabric Roll Winding Machine Customized 380v 0.25kw 0

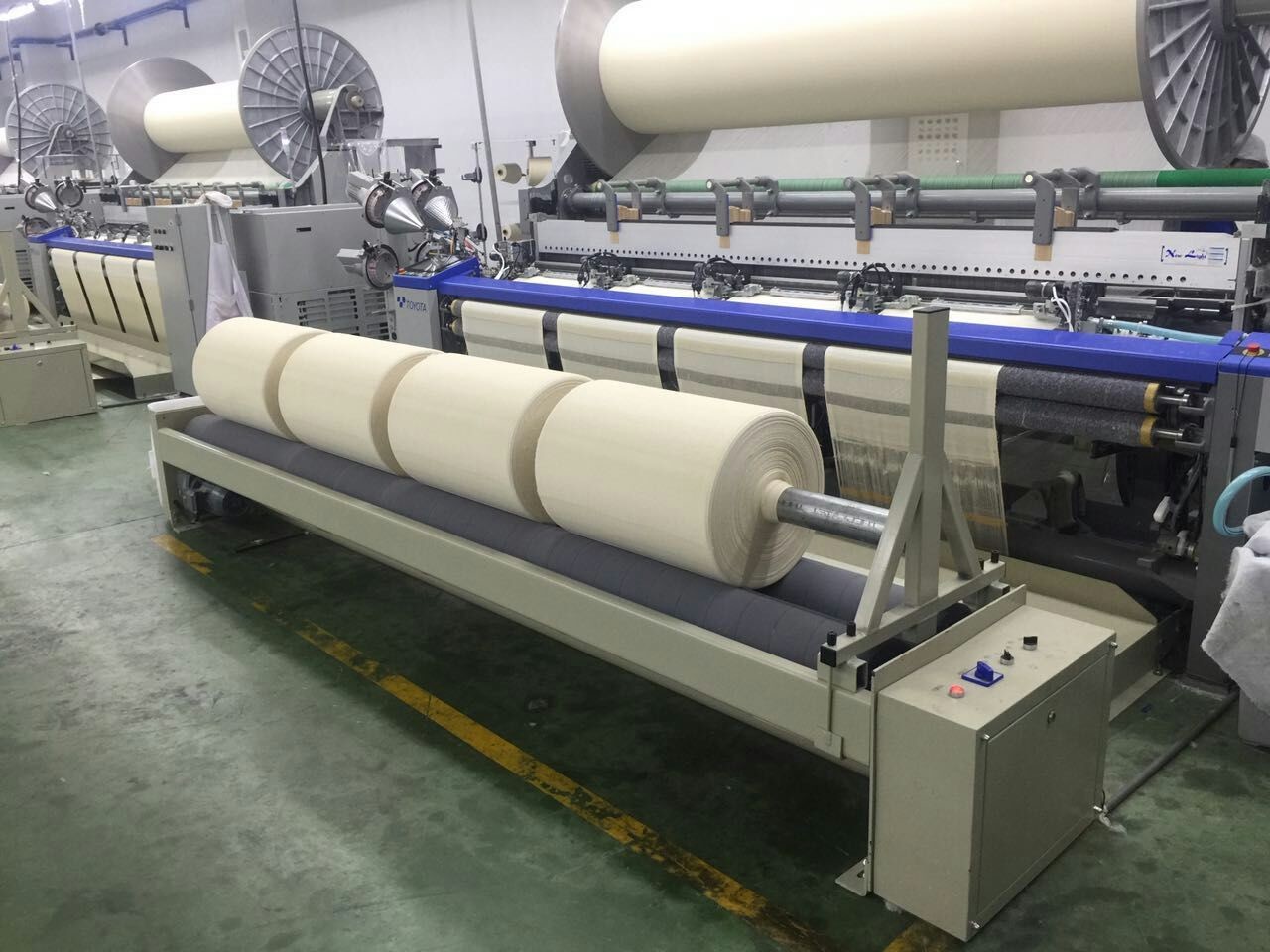

Textile Fabric Roll Winding Machine Customized 380v 0.25kw 2

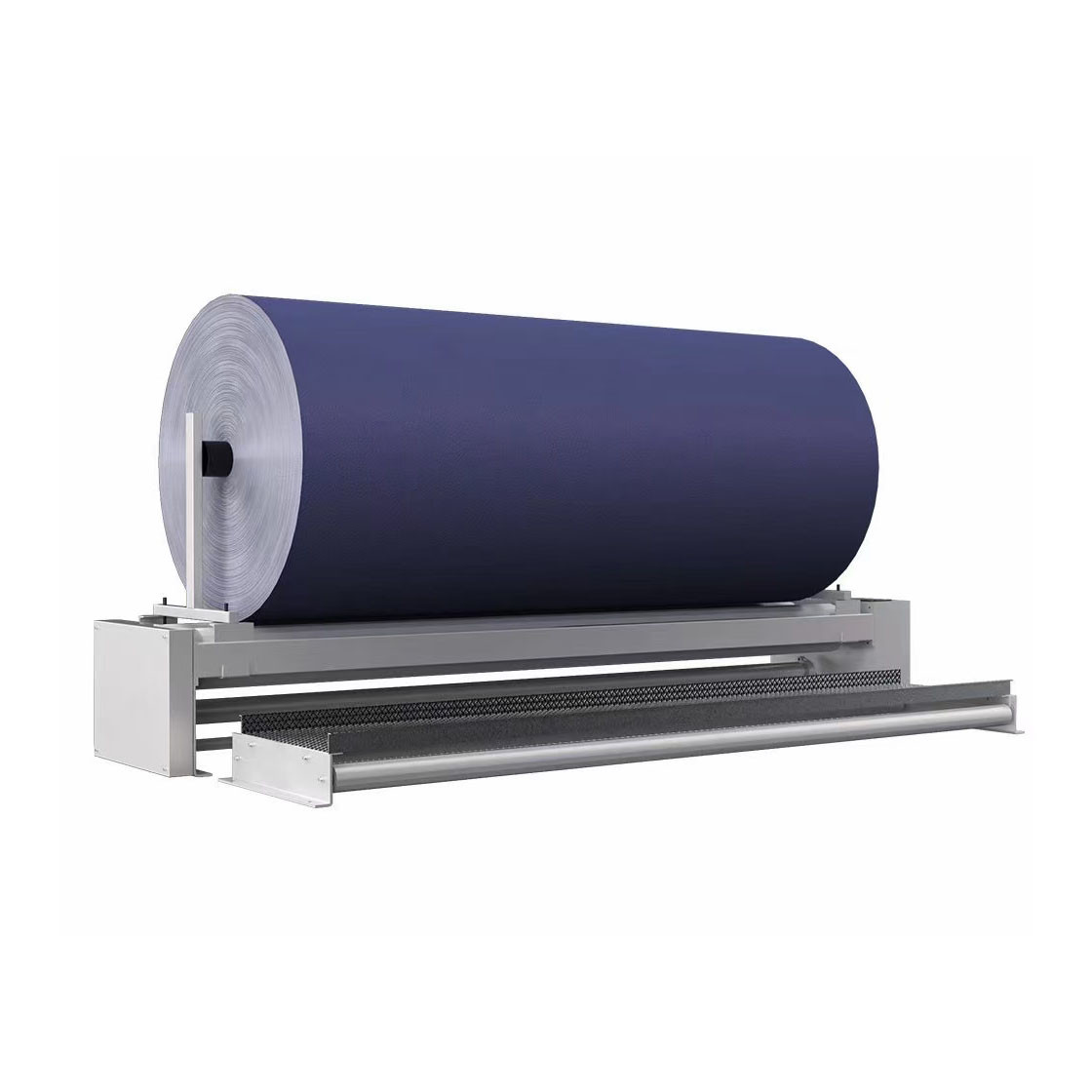

Textile Fabric Roll Winding Machine Customized 380v 0.25kw 4

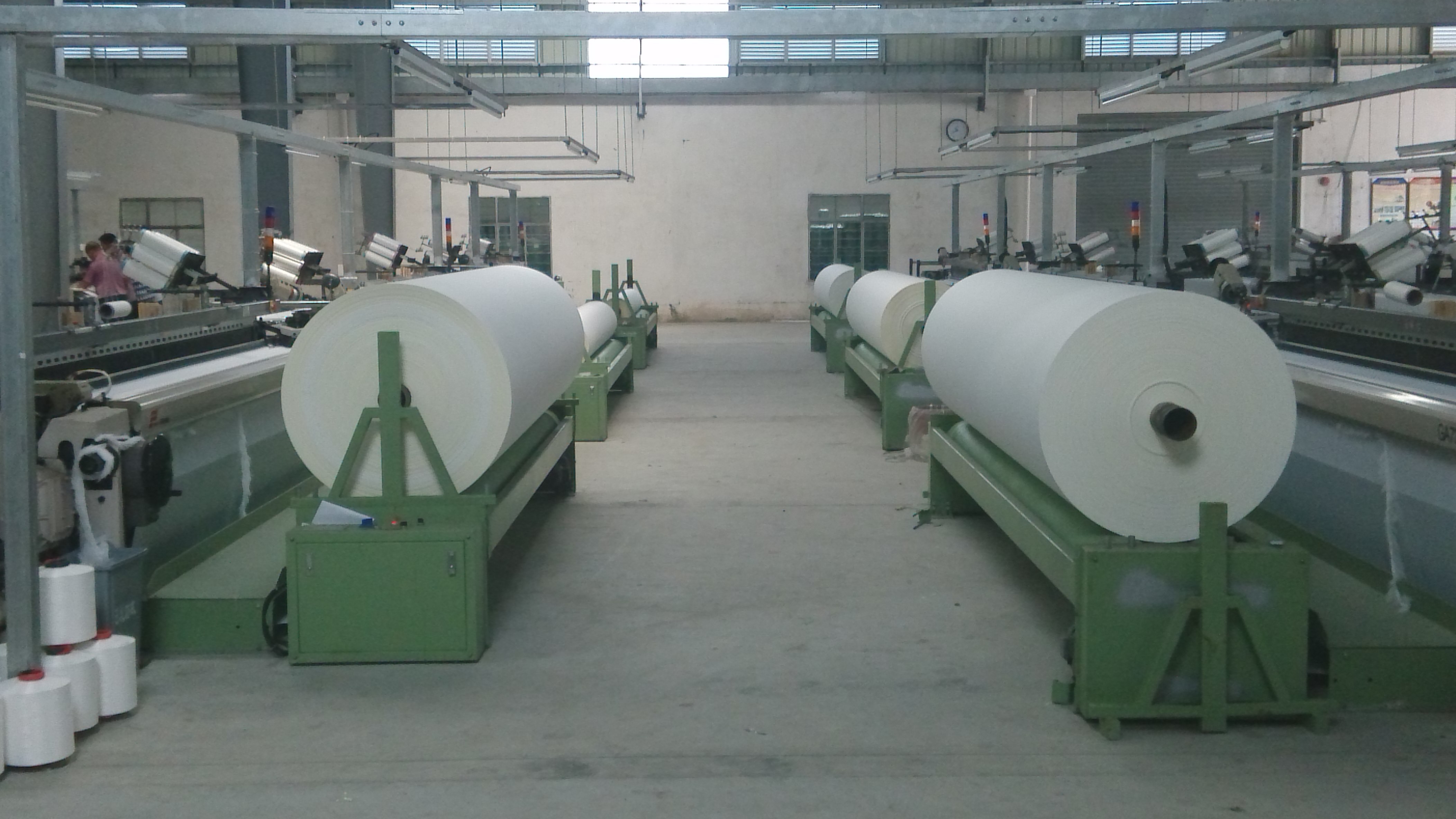

Textile Fabric Roll Winding Machine Customized 380v 0.25kw 6
Horizontal Cloth Winder can be widely used to connect air jet, rapier, projectile, water
jet and other manufacturers of weaving machines.It can be used for rolling common cotton and chemical fiber fabric, as well as industrial cloth such as glass fiber and geotextile.
1.Less fabric waste and increase efficiency
2.Fast and easily handled, one operator can take care of multiple machines
3.High degree of automation, can automatically track the start, stop and speed changes of the loom, to set the tension for smooth winding.
4.Variable working width is possible

Main Technical Features

Technical Specifications
* Speed:Synchronized with Weaving Machines
* Fabric Width:1.2-4.5meters
* Max winding diameter:1500mm (standard:1200mm)
* Edge-alignment Error:≤5mm
* Dimension(L*W*H):As per customer's fabric width
* Electric Specs:3Phase-380V; 50HZ(can be adjusted to suit for difffferent countries.)
* Frequency converter control electrical mode
* Automatic winding, stop, manual reversal and other operation functions
machine structure
* The diameter of the two winding rollers is Φ217mm, one roller is covered with anti-skid rubber, the other roller is galvanized or sprayed with plastic.
* Non-slip foot pedal * Option - Inspection tablewith LED * Option - Man-machine interface operation mode * Option - Accurate length measuring giving accuracy of ± 0.01% * Option - Semi-automatic doffing device(pneumatic roll ejection device)
* Option - Manual doffing device(Manual roll ejection device) * Option - Automatic fabric selvedge shifter for thick selvedge.
* Option - Electric press roller lifting device designed for tighter cloth coiling
Horizontal Cloth Fabric Roll Winding machine for Weaving

Place of Origin
Jiangsu, China
Brand Name
Xianchuang
Warranty
The core components are guaranteed for 1 year
Applicable Industries
Weaving Factory, Textile Factory
Usage
Weaving Loom Machine
Power
0.25kw,50 Hz
Voltage
According to actual condition
Max winding diameter
1500mm (standard:1200mm)
Speed
Synchronized with Weaving Machines
Item
Fabric Roll Winder
