Aluminum Stainless Warp Beam For Rapier Loom GL105 High Tensile

Name: Aluminum Stainless Warp Beam For Rapier Loom GL105 High Tensile
Brand: Xianchuang
SKU: Xianchuang
Price: 660.00 USD
Availability: InStock
Rating: 4.5 (104 reviews)

Minimum Order Quantity :	5 Pieces	Price :	$660.00/Pieces 5-49 Pieces

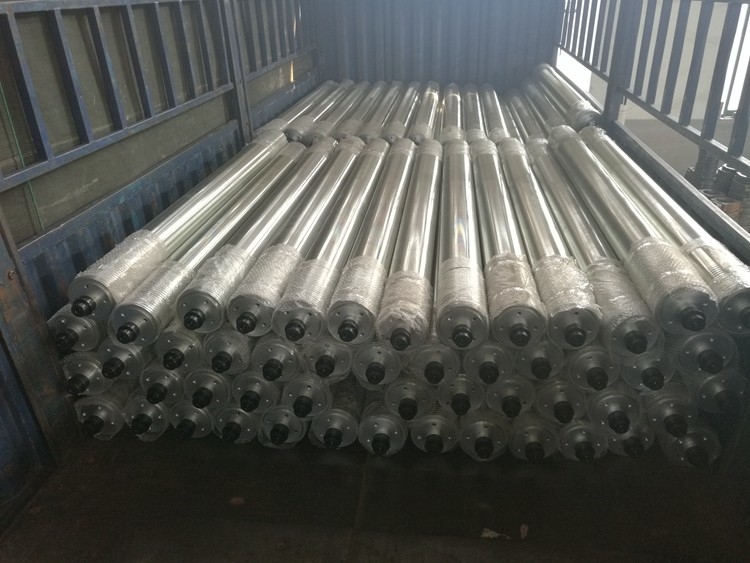

Packaging Details :	1.Steel Pallet&Stretch Wrapping Film for FCL(full container loaded)<br> 2.Wooden Box for LCL(less than container loaded)	Delivery Time :	2-3 weeks
Payment Terms :	L/C, T/T	Supply Ability :	5000 Piece/Pieces per Month

Place of Origin:	Jiangsu, China	Brand Name:	Xianchuang

Detail Information
Condition:	New	Applicable Industries:	Weaving Factory
Use:	Weaving Machinery	Type:	Roller Shaft
Usage:	Water Jet Weaving Loom Machine	Material For Beam Barrel:	#20 Seamless Steel Tube
Material For Flange:	GL105 High Tensile Aluminum Alloy	Working Width:	As Customized
Feature:	Strong	MOQ:	5pcs
DELIVERY TIME:	30-45 Days
High Light:	Aluminum stainless Warp Beam , Warp Beam For Rapier Loom , GL105 high tensile Warp Beam

Product Description

Xianchuang can manufacture weaving beams for any brand of looms.

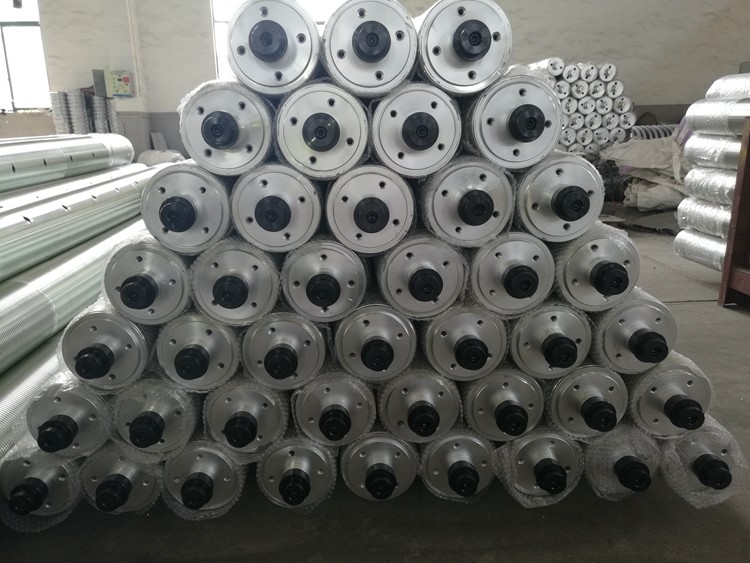

XIANCHUANG Weaving Loom Beam are widely applied in rapier, jacquard, air-jet, water-jet machine of Sulzer, Toyota, Dornier, Tsudakoma, Picanol, Somet, Benninger, muller, and etc, with flange diameter of 600-1250mm. Weaving Beam is manufactured with single and twin section accompanied with driving gear for smooth working. Customized beam working width or other special requirement can be satisfied.

Main Technical Features

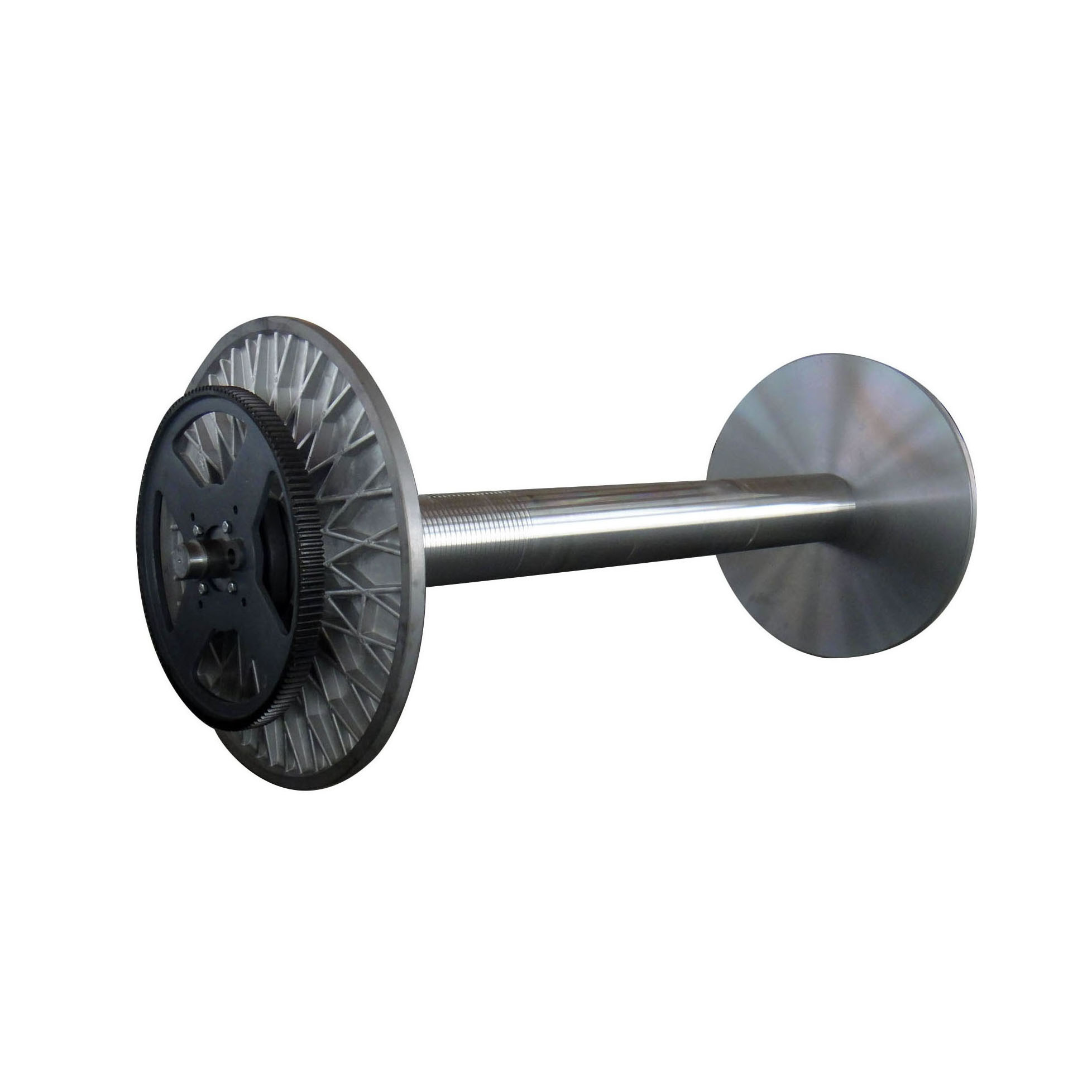

* Flange:Made by ZL105High Strength Aluminum Alloy, higher material and mechanical property than normal materials; Surface anodized treatment. Flanges are available in a variety of weights or strengths, depending on the yarn.
* Beam Barrel:Made by 20# Seamless Steel Pipe; Galvanized Passivation.

* Gear:Made by QT500-7 Nodular Cast Iron.
* Barrel Jump <0.35mm per 1000mm
* Flange Vertical Jitter <0.35mm

Loom Beam/Warp Beam for Tsudakoma Water Jet Loom machine
Place of Origin	Jiangsu, China
Brand Name	Xianchuang
Warranty	13 months from date of shipment
Applicable Industries	Weaving factory
Usage	Water Jet Weaving Loom Machine
Material For Beam Barrel	#20 seamless steel tube
Material For Flange	GL105 high tensile aluminum alloy
Working Width	as customized
Flange Diameter	Φ600,Φ800,Φ930,Φ1000,Φ1250,Φ1400,other specifications can be customized in large quantities
Item	Weaving Machine Aluminum Beam for Toyota Looms
