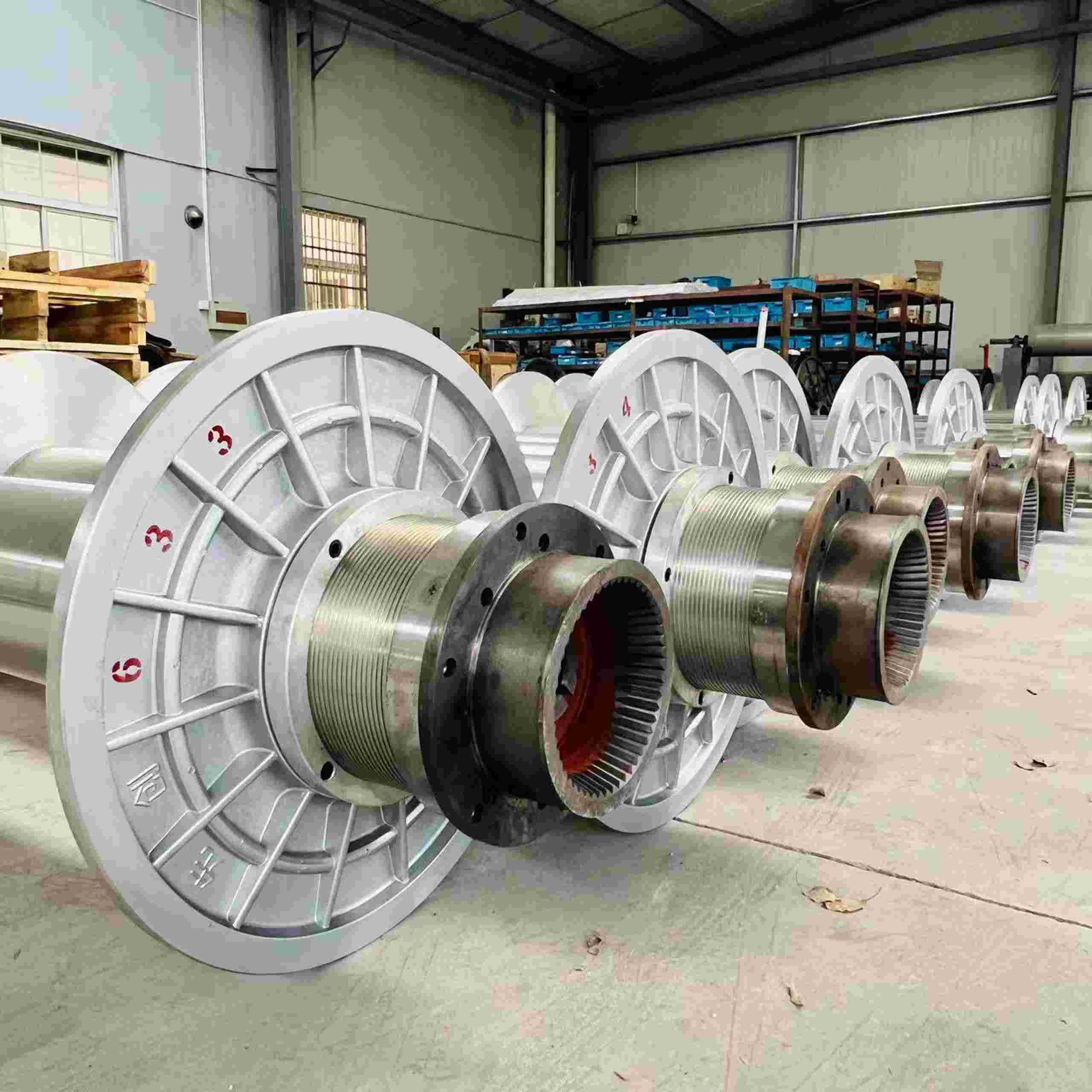

Customized Warp Beams For Warping Machine

P   Product Description

Xianchuang supplies both weaving beam and warping beam.

Xianchuang WARPER'S BEAM is suitable for Benninger, Karl mayer, Hakoba, West Point, Sucker and other high speed sectional and conventional warping machines. Available Flange Diameter :800mm to 1400mm. Working width: 1600mm to 2800mm.

      Technical Features

●Flange:Made by ZL105 High Strength Aluminum Alloy, higher material and mechanical property than normal materials; Surface anodized treatment.

●Beam Barrel:Made by 20# Seamless Steel Pipe,surface painted.

●Break Disc:Made by QT500-7 Nodular Cast Iron.

●Barrel Jump <0.25mm per 1000mm

●Flange Vertical Jitter <0.35mm

●Balance Correction <30g
